SQLTXPLAIN under new administration

with 3 comments

During my 17 years at Oracle, I developed several tools and scripts. The largest and more widely used is SQLTXPLAIN. It is available through My Oracle Support (MOS) under document_id 215187.1.

SQLTXPLAIN, also know as SQLT, is a tool for SQL diagnostics, including Performance and Wrong Results. I am the original developer and author, but since very early stages of its development, this tool encapsulates the expertise of many bright engineers, DBAs, developers and others, who constantly helped to improve this tool on every new release by providing valuable feedback. SQLT is then nothing but the collection of many good ideas from many people. I was just the lucky guy that decided to build something useful for the Oracle SQL tuning community.

When I decided to join Enkitec back on 2013, I asked Mauro Pagano to look after my baby (I mean SQLT), and sure enough he did an excellent job. Mauro fixed most of my bugs, as he jokes about, and also incorporated some of his own :-). Mauro kept SQLT in good shape and he was able to continue improving it on every new release. Now Mauro also works for Enkitec, so SQLT has a new owner and custodian at Oracle.

Abel Macias is the new owner of SQLT, and as such he gets busy maintaining and enhancing this tool among other duties at Oracle. So, if you have enhancement requests, or positive feedback, please reach out to Abel at his Oracle account: abel.macias@oracle.com. If you come across some of my other tools and scripts, and they show my former Oracle account (carlos.sierra@oracle.com), please reach out to Abel and he might be able to route your concern or question.

Since one of my hobbies is to build free software that I also consume, my current efforts are on eDB360, eAdam and eSP. The most popular and openly available is eDB360, which basically gives your a 360-degree view of a database without installing anything. Then, Mauro is also building something cool on his own free time. Mauro is building the new SQLd360 tool, which is already available on the web (search for SQLd360). This SQLd360 tool, similar to eDB360, provides a 360-degree view, but instead of a database its focus is one SQL. And similarly than eDB360 it installs nothing on the database. Both are available as “free software” for anyone to download and use. That is the nice part: everyone likes free! (specially if any good).

What is the difference between SQLd360 and SQLT?

Both are exceptional tools. And both can be used for SQL Tuning and for SQL diagnostics. The main differences in my opinion are these:

  1. SQLT has it all. It is huge and it covers pretty much all corners. So, for SQL Tuning this SQLTXPLAIN is “THE” tool.
  2. SQLd360 in the other hand is smaller, newer and faster to execute. It gives me what is more important and most commonly used.
  3. SQLT requires to install a couple of schemas and hundreds of objects. SQLd360 installs nothing!
  4. To download SQLT you need to login into MOS. In contrast, SQLd360 is wide open (free software license), and no login is needed.
  5. Oracle Support requires SQLT, and Oracle Engineers are not exposed yet to SQLd360.
  6. SQLd360 uses Google charts (as well as eDB360 does) which enhance readability of large data sets, like time series for example. Thus SQLd360 output is quite readable.
  7. eDB360 calls SQLd360 on SQL of interest (large database consumers), so in that sense SQLd360 enhances eDB360. But SQLd360 can also be used stand-alone.

If you ask me which one would I recommend, I would answer: both!. If you can use both, then that is better than using just one. Each of these two tools (SQLT and SQLd360) has pros and cons compared to the other. But at the end both are great tools. And thanks to Abel Macias, SQLT continues its lifecycle with frequent enhancements. And thanks to Mauro, we have now a new kid on the block! I would say we have a win-win for our large Oracle community!

Written by Carlos Sierra

March 18, 2015 at 12:37 pm

Some eDB360 Frequently Asked Questions

with 6 comments

As I get frequent questions about eDB360 I decided to post some FAQ here. First, some links to prior posts:

  1. Video: Introducing the eDB360 Tool
  2. What to do if edb360 takes long to run
  3. eDB360
  4. What is new with EDB360?
  5. How to execute eAdam and eDB360
  6. Meet “edb360″: a free tool that provides a 360-degree view of an Oracle database
  7. Presentations

Q: When is the best time to execute edb360?

A: At the end of a regular working day. Since it may take several hours to execute, some customers schedule it for a Friday evening.

Q: How long will edb360 take to execute on my production environment?

A: I don’t know. Best way to predict this is by executing edb360 in a lower but similar environment, like QA or TEST.

Q: Are there any risks on executing edb360 on a production environment?

A: No that I know. Think edb360 as a long sequence of SQL statements against DBA and GV$ views. Are they going to break anything? In theory not. So far I haven’t see edb360 breaking any environment. And if it does most probably it would a database bug. Most conservative approach is to try it first on a lower environment.

Q: Does edb360 install anything on my database?

A: No.

Q: Does edb360 changes the state of my database?

A: No.

Q: My edb360 seems to be hanging. How can I tell for sure?

A: Use any normal method: OEM, query long operations, look at V$SQL for active SQL. If you see edb360 is “stuck” at one SQL for let’s say more than one hour, you may want to report this to me. You can also find the SQL, kill the session, comment out that SQL out of edb360 code, and retry. When I have seen this, it happens to be either a known database bug, or lack of good statistics on schema objects behind particular query.

Q: Why is the output of edb360 so extensive?

A: We don’t know what we don’t know. Since edb360 is used for Oracle databases health-checks, trying to minimize the number of round trips to collect diagnostics, this tool collects many pieces of information. Sometimes we use most, sometimes we use a small subset. It all depends what we see.

Q: How do I read edb360?

A: Personally, I read everything. It takes me at least one day for an initial review. When I look at it for the 2nd or 3rd time, my search is narrower and deeper. While I look at it the 1st time I take some light notes, else I forget what I have seen so far.

Q: Can I use edb360 on any Oracle database?

A: Yes, as long as it is 10g, 11g or 12c. It works on any platform, but it works better on Linux and UNIX. It works for any application, including EBS, PSFT, Siebel, SAP and any custom one.

Q: Can I use edb360 on a non-Oracle database?

A: No.

Q: Is edb360 certified to run on 12c?

A: Not yet. It should work fine for single-tenant databases. I haven’t tested it on 12c although. I will do soon.

Q: Can I use edb360 for sizing and/or capacity?

A: Yes and no. edb360 captures sizing metadata using the eSP collector. The eSP application for Sizing and Provisioning is Enkitec’s proprietary (now Accenture’s). So we can use edb360 for sizing, but only internally and when our client asks for it.

Q: Is edb360 free software?

A: Yes. look for license file included on tool.

Q: Where do I get the latest version of this tool?

A: Look at the column at the right of this entry. There is a section with a “Download” title. That links will take you to a GitHub location where you can download the latest version.

Q: Can I use edb360 for SQL Tuning?

A: Actually, for that you may want to get SQLd360, which is work in progress by Mauro Pagano. In the meantime you can use planx.sql, sqlmon.sql, sqlash.sql (under my cscripts) or download SQLTXPLAIN and/or SQLHC from MOS.

Q: Can I share edb360 tool with others?

A: Absolutely! I developed this tool thinking on our Oracle community.

Q: I have some ideas to improve edb360. How can I provide them?

A: Send me an email, or post them here. Every so often I get some good ideas, which I put on my list and one day I get to them. Keep in mind that I work on edb360 on my free personal time, so some ideas take longer to implement than others.

Q: Where can I learn more about edb360?

A: Look at links at the top. There is a 1hr presentation that goes over what this tool does. There is also a fresh sample output available.

Written by Carlos Sierra

January 7, 2015 at 2:56 pm

Posted in edb360

What to do if edb360 takes long to run

with 4 comments

Every once in a while it comes to my attention that edb360 takes several hours to run. What can be done? My advice is to let it run for several hours if possible. In most environment it completes in less that 1 hour, but I have seen cases where it may take 5 or 6. The reason is simple: too many SQL statements to execute. And some of those queries are executed on top of large historical sets. The good news is that edb360, as it executes each script, it compresses the output and catalogues it inside the main output ZIP file. So, even if you have to stop edb360 after hours of execution, the output is useful. On top of that, the least relevant collection happens at the end, so within the first hour or so you most probably have the essence of your system. Then, if you find yourself in a situation where edb360 has been in execution for several hours and you decide to kill it, please still use the output ZIP file. Also, within that file there are a couple of logs that can help to determine where exactly it got “stuck” (meaning which query is taking longer in your system). Since we don’t know in advance if edb360 will take more than 1hr to run, the best time to start its execution is at the end of a normal work day, or during the weekend.

Written by Carlos Sierra

October 15, 2014 at 6:08 pm

Posted in edb360

eSP

with 2 comments

eSPEnkitec’s Sizing and Provisioning (eSP) is a new internal tool designed and developed with Oracle Engineered Systems in mind. Thanks to the experience and insights from Randy Johnson, Karl Arao and Frits Hoogland, what began as a pet project for some of us, over time became an actual robust APEX/PLSQL application, developed by Christoph Ruepprich and myself, and ready to debut at Oracle Open World 2014.

This posting is about eSP, what it does, and how it helps on the sizing and provisioning of Oracle Engineered System, or I would rather say, any System where Oracle runs.

We used to size Engineered Systems using a complex and very useful spread sheet developed by Randy Johnson and Karl Arao. Now, it is the turn for eSP to take the next step, and move this effort forward into a more scalable application that sits on top of one of our Exadata machines.

Sizing an Engineered System

Sizing a System can be quite challenging, especially when the current system is composed of several hosts with multiple databases of diverse use, size, versions, workloads, etc. The new target system may also bring some complexities; as the number of possible configurations grows, finding the right choice becomes harder. Then we also have the challenge of disk redundancy, recovery areas, the potential benefits of offloading with their smart scans, just to mention some added complexities.

At a very high level, Sizing a System is about 3 entities: Resources, Capacity and Utilization. Resources define what I call “demand”, which is basically the set of computational resources from your original System made of one or many databases and instances over some hosts. Capacity, which I also call it “supply”, is the set of possible target Systems with their multiple Configurations, in other words Engineered Systems, or any other hardware capable to host Oracle databases. Utilization, which I may also refer as “allocation” is where the magic and challenge resides. It is a clever and unbiassed mapping between databases and configurations, then between instances and nodes. This mapping has to consider at the very least CPU footprint, Memory for SGA and PGA, database disk space, and throughput in terms of IOPS and MBPS. Additional constraints, as mentioned before, include redundancy and offloading among others. CPU can be a bit tricky since each CPU make and model has its own characteristics, so mapping them requires the use of SPEC.

Other challenge a Sizing tool has to consider is the variability of the Resources. The question becomes: Do we see the Resources as a worst case scenario, or shall we rather consider them as time series? In other words, do we compute and use peaks, or do we observe the use of Resources over time, then develop some methods to aggregate them consistently as time series? If we decide to use a reduced set of data points, do we use peaks or percentiles? if the latter, which percentile is well balanced? 99.9, 99, 95 or maybe 90? How conservative are those values? There are so many questions and the answer for most of them, as you may guess is: “it all depends”.

How eSP Works

Without getting into the technical details, I can say that eSP is an APEX application with a repository on an Oracle database, which inputs collected “Requirements” from the databases to be sized, then it processes these Requirements and prepares them to be “Allocated” into one or more defined hardware configurations. The process is for the most part “automated”, meaning this: we execute some tool or script in the set of hosts where the databases reside, then upload the output of these collectors into eSP and we are ready to Plan and apply “what-if” scenarios. Having an Exadata System as our work engine, it allows this eSP application to scale quite well. A “what-if” scenario takes as long as it takes to navigate APEX pages,while all the computations are done in sub-seconds behind scenes, thanks to Exadata!

Once we load the Resources from the eSP collector script, or from the eAdam tool, we can start playing with the metadata. Since eSP’s set of known Configurations (Capacity) include current Engineered Systems (X4), allocating Configurations is a matter of seconds, then mapping databases and instances becomes the next step. eSP contains an auto “allocate” algorithm for databases and instances, where we can choose between a “balanced” allocation or one that is “dense” with several density factors to choose from (100%, 90%, 80%, 70%, 60% and 50%). With all these automated options, we can try multiple sizing and allocation possibilities in seconds, regardless if we are Sizing and Provisioning for one database or a hundred of them.

eSP and OOW

eSP DemoThe Enkitec’s Sizing and Provisioning (eSP) tool is an internal application that we created to help our customers to Size their next System or Systems in a sensible manner. The methods we implemented are transparent and unbiassed. We are bringing eSP to Oracle Open World 2014. I will personally demo eSP at our assigned booth, which is #111 at the Moscone South. I will be on and off the booth, so if you are interested on a demo please let me know, or contact your Enkitec/Accenture representative. We do prefer appointments, but walk-ins are welcomed. Hope to see you at OOW!

Written by Carlos Sierra

September 21, 2014 at 5:40 pm

Posted in eAdam, edb360, Exadata, General, OOW

Free script to generate a Line Chart on HTML

with 20 comments

Performance Metrics are easier to digest if visualized trough some Line Charts. OEM, eDB360, eAdam and other tools use them. If you already have a SQL Statement that provides the Performance Metrics you care about, and just need to generate a Line Chart for them, you can easily create a CSV file and open it with MS-Excel. But if you want to build an HTML Report out of your SQL, that is a bit harder, unless you use existing technologies. Tools like eDB360 and eAdam use Google Charts as a mechanism to easily generate such Charts. A peer asked me if we could have such functionality stand-alone, and that challenged me to create and share it.

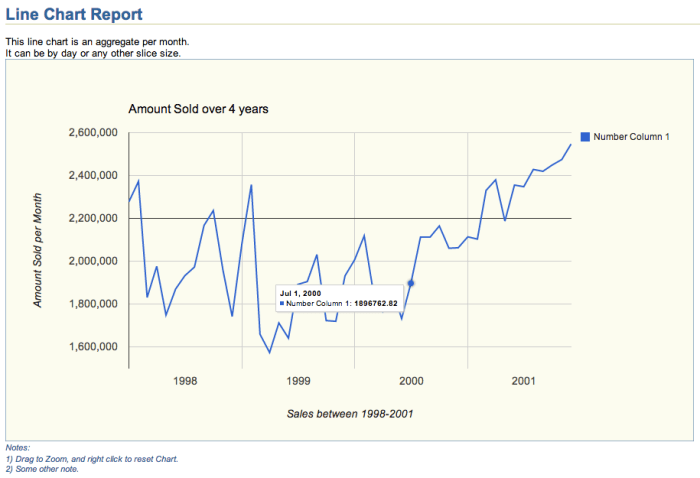

HTML Line Chart
This HTML Line Chart Report above was created with script line_chart.sql shown below. The actual chart, which includes Zoom functionality on HTML can be downloaded from this Dropbox location. Feel free to use this line_chart.sql script as a template to display your Performance Metrics. It can display several series into one Chart (example above shows only one), and by reviewing code below you will find out how easy it is to adjust to your own needs. Chart above was created using a simple query against the Oracle Sample Schema SH, but the actual use could be Performance Metrics or any other Application time series.

Script

SET TERM OFF HEA OFF LIN 32767 NEWP NONE PAGES 0 FEED OFF ECHO OFF VER OFF LONG 32000 LONGC 2000 WRA ON TRIMS ON TRIM ON TI OFF TIMI OFF ARRAY 100 NUM 20 SQLBL ON BLO . RECSEP OFF;
PRO
DEF report_title = "Line Chart Report";
DEF report_abstract_1 = "<br>This line chart is an aggregate per month.";
DEF report_abstract_2 = "<br>It can be by day or any other slice size.";
DEF report_abstract_3 = "";
DEF report_abstract_4 = "";
DEF chart_title = "Amount Sold over 4 years";
DEF xaxis_title = "Sales between 1998-2001";
--DEF vaxis_title = "Amount Sold per Hour";
--DEF vaxis_title = "Amount Sold per Day";
DEF vaxis_title = "Amount Sold per Month";
DEF vaxis_baseline = ", baseline:2200000";
DEF chart_foot_note_1 = "<br>1) Drag to Zoom, and right click to reset Chart.";
DEF chart_foot_note_2 = "<br>2) Some other note.";
DEF chart_foot_note_3 = "";
DEF chart_foot_note_4 = "";
DEF report_foot_note = "This is a sample line chart report.";
PRO
SPO line_chart.html;
PRO <html>
PRO <!-- $Header: line_chart.sql 2014-07-27 carlos.sierra $ -->
PRO <head>
PRO <title>line_chart.html</title>
PRO
PRO <style type="text/css">
PRO body   {font:10pt Arial,Helvetica,Geneva,sans-serif; color:black; background:white;}
PRO h1     {font-size:16pt; font-weight:bold; color:#336699; border-bottom:1px solid #cccc99; margin-top:0pt; margin-bottom:0pt; padding:0px 0px 0px 0px;}
PRO h2     {font-size:14pt; font-weight:bold; color:#336699; margin-top:4pt; margin-bottom:0pt;}
PRO h3     {font-size:12pt; font-weight:bold; color:#336699; margin-top:4pt; margin-bottom:0pt;}
PRO pre    {font:8pt monospace;Monaco,"Courier New",Courier;}
PRO a      {color:#663300;}
PRO table  {font-size:8pt; border_collapse:collapse; empty-cells:show; white-space:nowrap; border:1px solid #cccc99;}
PRO li     {font-size:8pt; color:black; padding-left:4px; padding-right:4px; padding-bottom:2px;}
PRO th     {font-weight:bold; color:white; background:#0066CC; padding-left:4px; padding-right:4px; padding-bottom:2px;}
PRO td     {color:black; background:#fcfcf0; vertical-align:top; border:1px solid #cccc99;}
PRO td.c   {text-align:center;}
PRO font.n {font-size:8pt; font-style:italic; color:#336699;}
PRO font.f {font-size:8pt; color:#999999; border-top:1px solid #cccc99; margin-top:30pt;}
PRO </style>
PRO
PRO <script type="text/javascript" src="https://www.google.com/jsapi"></script>
PRO <script type="text/javascript">
PRO google.load("visualization", "1", {packages:["corechart"]})
PRO google.setOnLoadCallback(drawChart)
PRO
PRO function drawChart() {
PRO var data = google.visualization.arrayToDataTable([
/* add below more columns if needed (modify 3 places) */
PRO ['Date Column', 'Number Column 1']
/****************************************************************************************/
WITH
my_query AS (
/* query below selects one date_column and a small set of number_columns */
SELECT --TRUNC(time_id, 'HH24') date_column /* preserve the column name */
       --TRUNC(time_id, 'DD') date_column /* preserve the column name */
       TRUNC(time_id, 'MM') date_column /* preserve the column name */
       , SUM(amount_sold) number_column_1 /* add below more columns if needed (modify 3 places) */
  FROM sh.sales
 GROUP BY
       --TRUNC(time_id, 'HH24') /* aggregate per hour, but it could be any other */
       --TRUNC(time_id, 'DD') /* aggregate per day, but it could be any other */
       TRUNC(time_id, 'MM') /* aggregate per month, but it could be any other */
/* end of query */
)
/****************************************************************************************/
/* no need to modify the date column below, but you may need to add some number columns */
SELECT ', [new Date('||
       TO_CHAR(q.date_column, 'YYYY')|| /* year */
       ','||(TO_NUMBER(TO_CHAR(q.date_column, 'MM')) - 1)|| /* month - 1 */
       --','||TO_CHAR(q.date_column, 'DD')|| /* day */
       --','||TO_CHAR(q.date_column, 'HH24')|| /* hour */
       --','||TO_CHAR(q.date_column, 'MI')|| /* minute */
       --','||TO_CHAR(q.date_column, 'SS')|| /* second */
       ')'||
       ','||q.number_column_1|| /* add below more columns if needed (modify 3 places) */
       ']'
  FROM my_query q
 ORDER BY
       date_column
/
/****************************************************************************************/
PRO ]);
PRO
PRO var options = {
PRO backgroundColor: {fill: '#fcfcf0', stroke: '#336699', strokeWidth: 1},
PRO explorer: {actions: ['dragToZoom', 'rightClickToReset'], maxZoomIn: 0.1},
PRO title: '&&chart_title.',
PRO titleTextStyle: {fontSize: 16, bold: false},
PRO focusTarget: 'category',
PRO legend: {position: 'right', textStyle: {fontSize: 12}},
PRO tooltip: {textStyle: {fontSize: 10}},
PRO hAxis: {title: '&&xaxis_title.', gridlines: {count: -1}},
PRO vAxis: {title: '&&vaxis_title.' &&vaxis_baseline., gridlines: {count: -1}}
PRO }
PRO
PRO var chart = new google.visualization.LineChart(document.getElementById('chart_div'))
PRO chart.draw(data, options)
PRO }
PRO </script>
PRO </head>
PRO <body>
PRO <h1>&&report_title.</h1>
PRO &&report_abstract_1.
PRO &&report_abstract_2.
PRO &&report_abstract_3.
PRO &&report_abstract_4.
PRO <div id="chart_div" style="width: 900px; height: 500px;"></div>
PRO <font class="n">Notes:</font>
PRO <font class="n">&&chart_foot_note_1.</font>
PRO <font class="n">&&chart_foot_note_2.</font>
PRO <font class="n">&&chart_foot_note_3.</font>
PRO <font class="n">&&chart_foot_note_4.</font>
PRO <pre>
L
PRO </pre>
PRO <br>
PRO <font class="f">&&report_foot_note.</font>
PRO </body>
PRO </html>
SPO OFF;
SET HEA ON LIN 80 NEWP 1 PAGES 14 FEED ON ECHO OFF VER ON LONG 80 LONGC 80 WRA ON TRIMS OFF TRIM OFF TI OFF TIMI OFF ARRAY 15 NUM 10 NUMF "" SQLBL OFF BLO ON RECSEP WR;





Written by Carlos Sierra

July 28, 2014 at 2:34 pm

eDB360

with 30 comments

An Oracle Database 360-degree View

eDB360 is a free tool that executes on an Oracle database and produces a compressed file which includes a large set of small Reports. This set of Reports provides a 360-degree view of an Oracle Database. eDB360 is mostly used for one of the following 3 reasons, listed here in order of frequency of use: 1) Keystone of an Oracle database Health-Check. 2) Kick-off for an Oracle database Performance Evaluation. 3) High-level view of System Resources demand and utilization for an Oracle database Sizing and Provisioning project.

Usually, Developers, Sys Admins and Consultants are not given open access to a database in a Production environment. This eDB360 free tool helps approved users to become familiar with an Oracle database in a non-intrusive way. Without installing anything on the database, the eDB360 tool connects to an Oracle database and produces a large set of flat files that can be reviewed offline while using an HTML browser or a Text editor.

eDB360 can be executed by someone with very limited access to an Oracle database (i.e. a Developer, Sys Admin or Consultant with just query access to the Data Dictionary views); or if executed by an authorized DBA, there is no actual need to provide any additional access to the Oracle database to the party requesting eDB360.

eDB360 works on 10gR2, 11gR2, and on higher releases of Oracle; and it can be used on Linux or UNIX Platforms. It has not been tested on Windows.

Instructions

Download the eDB360 tool and review the readme.md file included. Uncompress the master ZIP file on the Database Server of interest. Navigate to the main (master) directory and execute script edb360.sql connected as SYS or any other account with access to the Data Dictionary views (a DBA account is not required but it is preferred).

Execution time for eDB360 may exceed 1 hour, depending on the size of the Data Dictionary. And the size of the output may reach 1 GB, so be sure you execute this tool from a file system directory with at least 1 GB or free space. Common sizes of the output range between 10 and 100 MB.

eDB360 has only one required execution parameter:

  1. Oracle Pack License: A big portion of the information presented by eDB360 comes from Oracle’s Automatic Workload Repository (AWR), and AWR is licensed by Oracle under the Diagnostics Pack. A small part of the output of eDB360 comes from the SQL Monitoring repository, which is part of the Oracle Tuning Pack. This parameter accepts one of 3 values: “T”, “D” or “N”. If you database is licensed under the Oracle Tuning Pack, enter then the value of “T”. If your database is not licensed to use the Oracle Tuning Pack but it is licensed to use the Oracle Diagnostics Pack, enter “D” then. If your site is not licensed on any of these two Oracle Packs, enter “N” then. Be aware that a value of “N” reduces substantially the content and value of the output. Thus the preferred parameter value is “T” (Oracle Tuning Pack).

Sample

# unzip edb360-master.zip
# cd edb360-master
# sqlplus / as sysdba
SQL> @edb360.sql T

Download

eDB360, now part of SQLdb360, is available as free-to-use software. You can see its readme.md, license.txt or any other piece of the tool before downloading it.

Feedback

Please post your feedback about this eDB360 tool at this blog, or send and email directly to the tool author: Carlos Sierra.

Written by Carlos Sierra

July 27, 2014 at 6:14 pm

Posted in AWR, edb360, Health-Checks, Tools

Free script to very quickly and cheaply estimate the size of an index if it were to be rebuilt

with 7 comments

A good friend of mine recently asked me if edb360 included a section showing indexes that would benefit of a rebuild. I replied “not yet” and basically committed to add something. This topic of the needs versus the implications of rebuilding an index has been recently discussed in Richard Foote’s Blog. In my opinion, if you want to know more about indexes, Richard’s blog is one of the first stops. To my surprise and delight, I learned that we can actually use a little trick of the EXPLAIN PLAN FOR command and actually use the CBO to estimate what would be the size of an index if we were to create (or rebuild) it. In this latter blog posting Richard explains and demonstrates how it can be done.

My blog posting today is about encapsulating this cool method to quickly and cheaply estimate the size of an index if it were to be rebuilt, and put it on a free script for the Oracle community to use. So, feel free to use script below, but I need to remind you that before you jump to conclusions that this or that index should be rebuilt, read first about the actual need of doing so. You may want to include in your reading Richard Foote’s numerous postings on this topic, and also a couple of Oracle MOS notes: 989093.1 and 989186.1

----------------------------------------------------------------------------------------
--
-- File name:   estimate_index_size.sql
--
-- Purpose:     Reports Indexes with an Actual size > Estimated size for over 1 MB
--
-- Author:      Carlos Sierra
--
-- Version:     2014/07/18
--
-- Description: Script to very quickly and cheaply estimate the size of an index if it
--              were to be rebuilt. It uses EXPLAIN PLAN FOR CREATE INDEX technique.
--              It can be used on a single index, or all the indexes on a table, or
--              a particular application schema, or all application schemas. It does not
--              lock indexes and only updates the plan_table, which is usually a global
--              temporary table.
--
-- Usage:       Connect to SQL*Plus as SYS or DBA account and execute without parameters.
--              It will ask for optional schema owner, table name and index name. If all
--              3 are given null values then it acts on all application schemas. It
--              generates a simple text report with the indexes having an estimated size
--              of at least 1 MB over their actual size.
--
-- Example:     @estimate_index_size.sql
--
-- Notes:       Developed and tested on 11.2.0.3.
--
--              Inspired on blog posts from Richard Foote and Connor MacDonald:
--              http://richardfoote.wordpress.com/2014/04/24/estimate-index-size-with-explain-plan-i-cant-explain/#comment-116966
--              http://connormcdonald.wordpress.com/2012/05/30/index-size/
--
--              If considering index rebuilds based on the output of this script, read
--              first Richard Foote's numerous blog postings about this topic. Bottom
--              line: there are only a few cases where you actually need to manually
--              rebuild an index.
--
--              This method to estimated size of an index is far from perfect, please
--              scrutinize this script before using it. You may also want to read
--              Oracle MOS notes: 989093.1 and 989186.1 on this topic.
--
---------------------------------------------------------------------------------------
--
SPO estimate_index_size.txt;
UNDEF owner table_name index_name exclusion_list exclusion_list2;
DEF exclusion_list = "('ANONYMOUS','APEX_030200','APEX_040000','APEX_SSO','APPQOSSYS','CTXSYS','DBSNMP','DIP','EXFSYS','FLOWS_FILES','MDSYS','OLAPSYS','ORACLE_OCM','ORDDATA','ORDPLUGINS','ORDSYS','OUTLN','OWBSYS')";
DEF exclusion_list2 = "('SI_INFORMTN_SCHEMA','SQLTXADMIN','SQLTXPLAIN','SYS','SYSMAN','SYSTEM','TRCANLZR','WMSYS','XDB','XS$NULL')";
VAR random1 VARCHAR2(30);
VAR random2 VARCHAR2(30);
EXEC :random1 := DBMS_RANDOM.string('A', 30);
EXEC :random2 := DBMS_RANDOM.string('X', 30);
DELETE plan_table WHERE statement_id IN (:random1, :random2);

SET SERVEROUT ON;
DECLARE
  sql_text CLOB;
BEGIN
  FOR i IN (SELECT idx.owner, idx.index_name
              FROM dba_indexes idx,
                   dba_tables tbl
             WHERE idx.owner = NVL(UPPER(TRIM('&&owner.')), idx.owner) -- optional schema owner name
               AND idx.table_name = NVL(UPPER(TRIM('&&table_name.')), idx.table_name) -- optional table name
               AND idx.index_name = NVL(UPPER(TRIM('&&index_name.')), idx.index_name) -- optional index name
               AND idx.owner NOT IN &&exclusion_list. -- exclude non-application schemas
               AND idx.owner NOT IN &&exclusion_list2. -- exclude more non-application schemas
               AND idx.index_type IN ('NORMAL', 'FUNCTION-BASED NORMAL', 'BITMAP', 'NORMAL/REV') -- exclude domain and lob
               AND idx.status != 'UNUSABLE' -- only valid indexes
               AND idx.temporary = 'N'
               AND tbl.owner = idx.table_owner
               AND tbl.table_name = idx.table_name
               AND tbl.last_analyzed IS NOT NULL -- only tables with statistics
               AND tbl.num_rows > 0 -- only tables with rows as per statistics
               AND tbl.blocks > 128 -- skip small tables
               AND tbl.temporary = 'N')
  LOOP
    BEGIN
      sql_text := 'EXPLAIN PLAN SET STATEMENT_ID = '''||:random1||''' FOR '||REPLACE(DBMS_METADATA.get_ddl('INDEX', i.index_name, i.owner), CHR(10), ' ');
      -- cbo estimates index size based on explain plan for create index ddl
      EXECUTE IMMEDIATE sql_text;
      -- index owner and name do not fit on statement_id, thus using object_owner and object_name, using statement_id as processing state
      DELETE plan_table WHERE statement_id = :random1 AND (other_xml IS NULL OR NVL(DBMS_LOB.instr(other_xml, 'index_size'), 0) = 0);
      UPDATE plan_table SET object_owner = i.owner, object_name = i.index_name, statement_id = :random2 WHERE statement_id = :random1;
    EXCEPTION
      WHEN OTHERS THEN
        DBMS_OUTPUT.PUT_LINE(i.owner||'.'||i.index_name||': '||SQLERRM);
        DBMS_OUTPUT.PUT_LINE(DBMS_LOB.substr(sql_text));
    END;
  END LOOP;
END;
/
SET SERVEROUT OFF;

WITH
indexes AS (
SELECT pt.object_owner,
       pt.object_name,
       TO_NUMBER(EXTRACTVALUE(VALUE(d), '/info')) estimated_bytes
  FROM plan_table pt,
       TABLE(XMLSEQUENCE(EXTRACT(XMLTYPE(pt.other_xml), '/*/info'))) d
 WHERE pt.statement_id = :random2
   AND pt.other_xml IS NOT NULL -- redundant
   AND DBMS_LOB.instr(pt.other_xml, 'index_size') > 0 -- redundant
   AND EXTRACTVALUE(VALUE(d), '/info/@type') = 'index_size' -- grab index_size type
),
segments AS (
SELECT owner, segment_name, SUM(bytes) actual_bytes
  FROM dba_segments
 WHERE owner = NVL(UPPER(TRIM('&&owner.')), owner) -- optional schema owner name
   AND segment_name = NVL(UPPER(TRIM('&&index_name.')), segment_name) -- optional index name
   AND owner NOT IN &&exclusion_list. -- exclude non-application schemas
   AND owner NOT IN &&exclusion_list2. -- exclude more non-application schemas
   AND segment_type LIKE 'INDEX%'
HAVING SUM(bytes) > POWER(2, 20) -- only indexes with actual size > 1 MB
 GROUP BY
       owner,
       segment_name
),
list_bytes AS (
SELECT (s.actual_bytes - i.estimated_bytes) actual_minus_estimated,
       s.actual_bytes,
       i.estimated_bytes,
       i.object_owner,
       i.object_name
  FROM indexes i,
       segments s
 WHERE i.estimated_bytes > POWER(2, 20) -- only indexes with estimated size > 1 MB
   AND s.owner = i.object_owner
   AND s.segment_name = i.object_name
)
SELECT ROUND(actual_minus_estimated / POWER(2, 20)) actual_minus_estimated,
       ROUND(actual_bytes / POWER(2, 20)) actual_mb,
       ROUND(estimated_bytes / POWER(2, 20)) estimated_mb,
       object_owner owner,
       object_name index_name
  FROM list_bytes
 WHERE actual_minus_estimated > POWER(2, 20) -- only differences > 1 MB
 ORDER BY
       1 DESC,
       object_owner,
       object_name
/

DELETE plan_table WHERE statement_id IN (:random1, :random2);
UNDEF owner table_name index_name exclusion_list exclusion_list2;
SPO OFF;

Written by Carlos Sierra

July 18, 2014 at 9:45 am

What is new with EDB360?

with 9 comments

Many things, but most important is that it got bigger and better. This EDB360 free tool provided is maturing over time. Its core function has not changed although, which is to present a 360-degree view of a database (10g or higher).

EDB360 is a nice complement to other tools like Exacheck, Raccheck or Oracheck. It has some additional benefits, like taking a snapshot of a system to then be analyzed offline or simply to preserve this snapshot as a baseline.

Keep in mind that EDB360 does not install anything on the database, nor it changes any data on it. In some cases, where direct access to the database server is not an option, having the capability of executing EDB360 through a SQL*Plus client connection is a big plus.

I use EDB360 as a starting place to perform a whole database health-check.

Since pictures tell more than words, please find below 4. The first two are about the new entries on EDB360 main menu (menu is a tad bigger than what you see in these two pictures, and its content is dynamic). The last two pictures are just a sample of the charts that are now part of EDB360.

EDB360 execution parameters changed from 4 to 6:

  1. Oracle Pack License: If your site has the Tuning Pack, then enter ‘T’, else if your site has the Diagnostics Pack enter ‘D’, else enter ‘N’.
  2. Days of History to consider. If you entered ‘T’ or ‘D’ on first parameter, then specify on 2nd parameter up to how many days of history you want EDB360 to use. By default it uses 31, assuming your AWR history is at least that big.
  3. Do you want HTML Reports? By default it is ‘Y’.
  4. Do you want Text Reports? Defaults to ‘Y’.
  5. Do you want CSV Files? Defaults to ‘Y’.
  6. Do you want Charts? Defaults to ‘Y’.

Once you login into SQL*Plus while on top of the edb360 directory, simply execute script edb360.sql and pass all 6 parameters one by one or all of them inline. For example: @edb360 T 31 Y Y Y Y

EDB360 menu (part 1)

EDB360 Dynamic Menu (part 1)

EDB360 menu (part 2)

EDB360 Dynamic Menu (part 2)

CPU Load per Instance (sample chart)

CPU Load per Instance (sample chart)

ASH Top Modules and Actions for Cluster (sample chart)

ASH Top Modules and Actions for Cluster (sample chart)

If you have downloaded EDB360 before, then I encourage you to download and test the new version. If you have never used it, I hope you find this tool useful.

Written by Carlos Sierra

April 2, 2014 at 10:04 am

Meet: eAdam – Enkitec’s free AWR data mining tool

with 9 comments

You recently learned about eDB360, and now eAdam? What is this eAdam tool? Before you continue reading, please be aware that eAdam reads data from AWR, thus you must have a license for the Oracle Diagnostics Pack in order to use this new eAdam tool.

Introduction

New eAdam is a free tool to perform data mining on performance related historical data recorded by AWR. The main characteristics of eAdam are:

  • Installs nothing on the Source database (usually Production)
  • Extracts AWR performance related data as plain text flat files (no export or data pump binary files)
  • Upload extracted AWR data into a Staging database of same or different platform and release
  • Data mining is performed on the Staging database instead of Production

How does eAdam work?

It is better to explain eAdam by functions. So I would say eAdam has the following 4 modules:

  1. AWR extraction from Source (Production)
  2. eAdam installation on Staging system
  3. Loading into eAdam Stage a set of AWR  files extracted from Source
  4. AWR data mining on eAdam Stage

AWR extraction from Source (Production)

This is the simplest part. You just need to execute a simple and short script on a Source system (usually Production). This script extracts into flat files the content of the following AWR views. Then it compresses them into a TAR file. List below may expand over time as new eAdam versions become available.

DBA_HIST_ACTIVE_SESS_HISTORY
DBA_HIST_DATABASE_INSTANCE
DBA_HIST_DATAFILE
DBA_HIST_DLM_MISC
DBA_HIST_EVENT_HISTOGRAM
DBA_HIST_FILESTATXS
DBA_HIST_IOSTAT_DETAIL
DBA_HIST_IOSTAT_FILETYPE
DBA_HIST_IOSTAT_FUNCTION
DBA_HIST_OSSTAT
DBA_HIST_PGASTAT
DBA_HIST_SERVICE_STAT
DBA_HIST_SGA
DBA_HIST_SGASTAT
DBA_HIST_SNAPSHOT
DBA_HIST_SQL_PLAN
DBA_HIST_SQLSTAT
DBA_HIST_SQLTEXT
DBA_HIST_SYS_TIME_MODEL
DBA_HIST_SYSSTAT
DBA_HIST_SYSTEM_EVENT
DBA_HIST_TEMPFILE
DBA_HIST_TEMPSTATXS

eAdam installation on Staging system

You install eAdam once and then use it multiple times. If you download a newer version just install it on top of the prior one, so you get the eAdam delta. eAdam should be installed on a Staging database and not in Production or UAT. Pretty much any database could be your Staging database (QA or any other lower environment). It could even be a database on your laptop for example. Your Staging database does not have to be the same platform or database release than Source.

To install eAdam you simply execute another script. It creates a schema (you provide the name and password), and this script creates the eAdam repository on your Staging database.

Loading into eAdam Stage a set of AWR  files extracted from Source

You can load into eAdam as many TAR files as you want. Each set is identified within eAdam with a sequence key. So your eAdam repository can contain AWR data from different systems, and they could be from same or different platforms and database releases. The data model of your eAdam repository is determined from your Staging database release, so it is ideal your Staging database is of equal or higher release than your Sources, but this is not mandatory.

To load a TAR file with AWR data into your Staging eAdam repository, you execute another script that asks for the TAR name and it produces a set of External Tables, then uploads the AWR data from the temporary external Tables into permanent staging Tables:

DBA_HIST_ACTIVE_SESS_HIST_S
DBA_HIST_DATABASE_INSTANC_S
DBA_HIST_DATAFILE_S
DBA_HIST_DLM_MISC_S
DBA_HIST_EVENT_HISTOGRAM_S
DBA_HIST_FILESTATXS_S
DBA_HIST_IOSTAT_DETAIL_S
DBA_HIST_IOSTAT_FILETYPE_S
DBA_HIST_IOSTAT_FUNCTION_S
DBA_HIST_OSSTAT_S
DBA_HIST_PGASTAT_S
DBA_HIST_SERVICE_STAT_S
DBA_HIST_SGASTAT_S
DBA_HIST_SGA_S
DBA_HIST_SNAPSHOT_S
DBA_HIST_SQLSTAT_S
DBA_HIST_SQLTEXT_S
DBA_HIST_SQL_PLAN_S
DBA_HIST_SYSSTAT_S
DBA_HIST_SYSTEM_EVENT_S
DBA_HIST_SYS_TIME_MODEL_S
DBA_HIST_TEMPFILE_S
DBA_HIST_TEMPSTATXS_S
DBA_HIST_XTR_CONTROL_S
DBA_TAB_COLUMNS_S

AWR Data mining on eAdam Stage

Once your AWR is available inside eAdam, you can perform all the Data Mining you may need. A sample script that produces several CSV files out of your data is provided. This sample script is automatically executed at the end of your upload, so you get a set of CSV files that can be used on Excel or any other tool that reads CSV files. I use Excel, where I can easily generate Charts out of the CSV files created by the sample script. That means I can easily visualize trends out of performance data without having access to the Source (Production) environment.

To produce the sample CSV files, eAdam provides a set of views on top of its own repository. These set of views will evolve over time as new releases become available. As of 1st release we provide the following views:

SH_AAS_APPLICATION_V1
ASH_AAS_CLUSTER_V1
ASH_AAS_COMMIT_V1
ASH_AAS_CONCURRENCY_V1
ASH_AAS_ON_CPU_V1
ASH_AAS_OTHER_V1
ASH_AAS_SCHEDULER_V1
ASH_AAS_TOTAL_V1
ASH_AAS_USER_IO_V1
ASH_INST_V1
ASH_RAC_V1
EVENT_HISTOGRAM_INST_V1
EVENT_HISTOGRAM_IO_RAC_V1
EVENT_HISTOGRAM_RAC_V1
EVENT_HISTOGRAM_RAC_V2
OSSTAT_BUSY_TIME_PERC_V1
OSSTAT_DELTA_V1
OSSTAT_INST_V1
OSSTAT_LOAD_V1
OSSTAT_RAC_V1
SYSTEM_EVENT_DELTA_V1
SYSTEM_EVENT_INST_V1
SYSTEM_EVENT_NON_IDLE_V1
SYSTEM_EVENT_RAC_V1
SYS_TIME_MODEL_DB_CPU_V3
SYS_TIME_MODEL_DB_TIME_V3
SYS_TIME_MODEL_DB_WAIT_V3
SYS_TIME_MODEL_DELTA_V1
SYS_TIME_MODEL_INST_V1
SYS_TIME_MODEL_RAC_V1

FAQ

Q1: Where can I download eAdam?

A1: From the Enkitec web page. Click on the “Products” tab. The tool will be available on March 7, 2014.

Q2: Is it really free?

A2: Yes. And before you ask what is the catch: “there is no catch”. Just be aware you must have an Oracle Diagnostics Pack license in order to access AWR data, and this eAdam tool is not an exception. Besides that, eAdam is free to download and use.

Q3: I need some extra functionality. How do I get it?

A3: If you need something that eAdam does not provide out of the box, of course you can extend its functionality directly. If the addition is something of general interest, you can submit an “Enhancement Request” (an email actually or a comment on this post). But it you want something more advanced and of particular use, you can contact Enkitec for a quote for this customization on top of eAdam (for example an Apex application).

Q4: Can I share this eAdam tool or its output?

A4: Sure you can. Just credit Enkitec for the tool. In other words, use it any way you want, but please honor authorship and ownership.

Q5: Who “owns” eAdam?

A5: Enkitec owns this new tool. Carlos Sierra is the author of eAdam, but the vision and some critical components were provided by: Frits Hoogland, Karl Arao and Randy Johnson. So eAdam is the product of a collaboration effort of some geeks working for Enkitec.

Conclusion

Enkitec is providing this eAdam tool for AWR Data Mining for free. Having an Oracle Diagnostics Pack is a must before using this tool. Besides that, feel free to use this tool at will, and perform all your AWR Data Mining outside the Source system, which is very important for a Production environment. This eAdam is very resource conscious on the Source system, and it empowers anyone to do performance analysis without having direct access to the Source database.

Having an AWR repository created with eAdam, enables many possibilities, like having baselines for particular processes, or compare performance between different time intervals (pre and post an application upgrade for example) or between two different systems (UAT and Production for example). If you already have a set of scripts to do data mining on DBA_HIST views, you can easily convert them to use the matching eAdam Staging tables so you would no longer be constrained to connect to the live system.

Performing Data Mining in entities like ASH as stored by AWR is like digging in a gold mine. There is so much the database wants to tell you. You just need this kind of of tool to listen carefully and find what is important.

Written by Carlos Sierra

March 5, 2014 at 7:29 am

Posted in Active Session History, ASH, AWR, eAdam, edb360, Scripts

Tagged with

Meet “edb360”: a free tool that provides a 360-degree view of an Oracle database

with 37 comments

Simply put: edb360 is a new free tool that provides a 360-degree view of an Oracle database.

What is “edb360“?

This “edb360” tool is the product of a collaborative effort of some very smart guys, and me. Special thanks to Frits Hoogland, Karl Arao, Randy Johnson, Martin Bach, Kyle Hailey, Tanel Poder, Alex Fatkulin, Mauro Pagano, Abel Macias, Jon Adams and Jack Agustin. These guys helped me to envision edb360, some directly and some indirectly, but their help and shared knowledge motivated me to develop edb360 and make it available today.

The edb360 tool started as a quick and dirty “script” to gather basic information about a database without knowing anything about it before hand. The first rule for edb360 was: it has to install nothing in the database. The second rule became: it has to provide some insight about a database.

The output is presented for the most part into 3 formats: HTML, Text and Comma-separated Values (CSV). Why? HTML and Text can be easily used to consolidate important findings into a Word report. Sometimes HTML is more useful and sometimes Text is better. Then CSV is used to produce charts out of Performance Trends. Some people can visualize trends easier with a graph (me included).

What about other tools?

Of course there are wonderful tools that can help in this arena, like Oracle Enterprise Manager (OEM) or Oracle’s Automatic Workload Repository (AWR). So why not using those tools? Well, if I had access to OEM or I knew before hand which time intervals I want to analyze with AWR, then I would not have a strong need to use edb360. The reality that we consultants face when we are getting acquainted of a system, is that we are not given any access to the database of interest (usually production). And asking for a server account feels like asking for coke’s secret formula: then we simply cannot poke the database at our own will, and that is understandable. So, what is our second best?: please run this script that installs nothing and generates a zip file with some metadata from your system.  The script is plain text and its output is also plain text (html, text and csv files). So, any DBA or System Administration can validate that no customer confidential data is extracted or exposed. A win-win!

If the system we want to understand is an Exadata system, we can also request for an Exacheck output, if  not an Exadata system but a RAC cluster, there is Raccheck. These two tools, available though My Oracle Support (MOS) make a good companion for the edb360. In other words, edb360 is not a replacement for the other two but more of an add-on or companion.

Why is edb360 free?

Why not? Often I get asked: why do you give away the tools and scripts you develop? The answer is simple: tools, scripts, white papers, blog entries like this, in my mind they all represent the same: sharing knowledge with our Oracle community. I wish for a community where knowledge (and tools) flows for all to benefit. Let’s say my personal time I invest building tools and scripts kinds of make it up for my lame blog postings. 😉

What is the catch?

No catch. Just be aware that edb360 makes use of some DBA_HIST views and ASH data, and those are part of the Oracle Diagnostics Pack. So when executing the tool it will ask  to indicate if your site has those licenses. Your answer determines the scope of the output. So if you specify you have a license for the Oracle Diagnostics Pack then your edb360 output includes pieces from AWR and ASH, else AWR and ASH are not accessed.

About versions, feedback and support

For the most part, I am committed to maintain this tool as my personal time permits. That means I can only work on it during odd hours and not every day. Nothing different than SQLTXPLAIN during the first few years of its existence, so I am not scared. Keep also in mind this edb360 is work in progress, and version v1405 is the first one I feel comfortable sharing with the community. In other words, it is far from perfect and I foresee it growing in multiple directions.

If you like this tool, and want to enhance its output, get SQLHC from MOS 1366133.1, and place the sqlhc.sql script into the same db360/sql directory. By doing so, you will also get 3 SQL health-checks. In other words, edb360 is SQLHC aware.

Conclusion

If you like free tools and have a use for this edb360 tool, you might as well download it and give it a shot. Nothing to lose (besides a few minutes of your spare time). A sample output is also available under same link above.

Life is Good!

Written by Carlos Sierra

February 19, 2014 at 7:34 pm
